Outdoor Cabinet and Container ESS

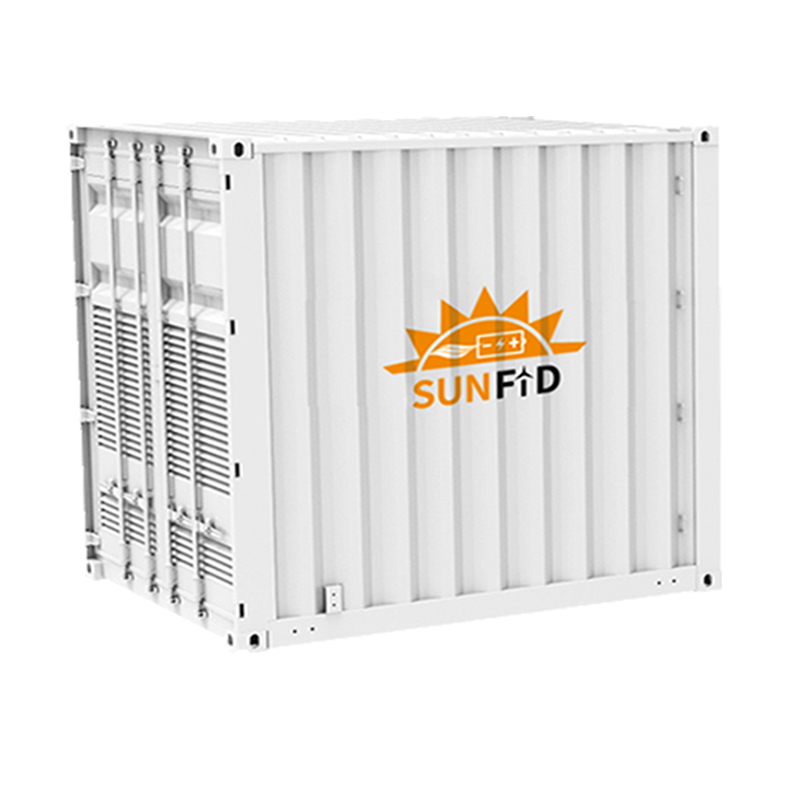

1MW Container Energy Storage Battery ESS Integrated System

Model Number: CES-1KKD1KA
Capacity：1290KWH
Voltage Rage：672 ~ 864V
Size: 2991*2896*2438mm(10 Feet)
Product description: 1.29MW Container Energy Storage Battery ESS Integrated System Outdoor Energy Container 2MW Container Storage Energy System
INQUIRY

1.29MW Container Energy Storage Battery ESS Integrated System

1MW Energy Storage System is highly integrated with lithium battery, battery management system, PCS, grounding system, power distribution system, temperature control system and fire protection system. The AC voltage is 400VAC, which can provide peak and valley filling, grid frequency adjustment, power expansion and backup. Power supply and other functional services to help customers reduce electricity costs to the greatest extent. Recommended for industrial and commercial users, optical storage and charging support, super fast charging station support and other scenarios

ESS Container Storage Energy System Features

Standard 10feet container design, compact design, suitable for small user scenarios
280Ah PACK+PACK level targeted fire + fan speed regulation
DC 1000V, 20 years of normal use
Main control cabinet, integrating DC confluence, power distribution, communication and control

1.29MW Outdoor Storage Energy System Parameters:

Item Name	Container Energy Storage Battery1290
Cell Type	LFP-3.2V-280Ah
Rated Capacity (KWh)	1290.24
Battery Voltage Range (V)	672-864
System Parameters
BMS	3 Grade
Size(mm)	299128962438 (10 Feet)
Weight(KG)	14T
IP Grade	IP54
Operation Temperature Range	-30°C ~ +50°C
Aux. Power Parameters	14KW-380V/50HZ
Fire Protection	Aerosol S/ Heptafluoropropane / Perfluorohexanone
Installation Mode	Outdoor Installation
System Communication Protocol	Modbus TCP
