Solar Pumping Inverter

  • 3KW Solar Pumping Inverter with MPPT AC Input
  • 3KW Solar Pumping Inverter with MPPT AC Input
3KW Solar Pumping Inverter with MPPT AC Input3KW Solar Pumping Inverter with MPPT AC Input

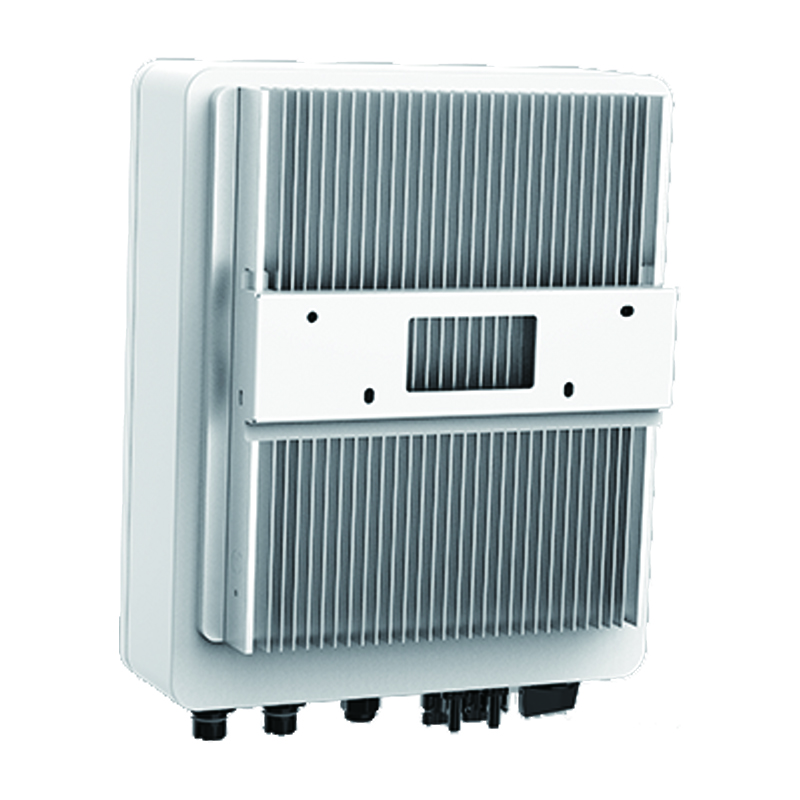

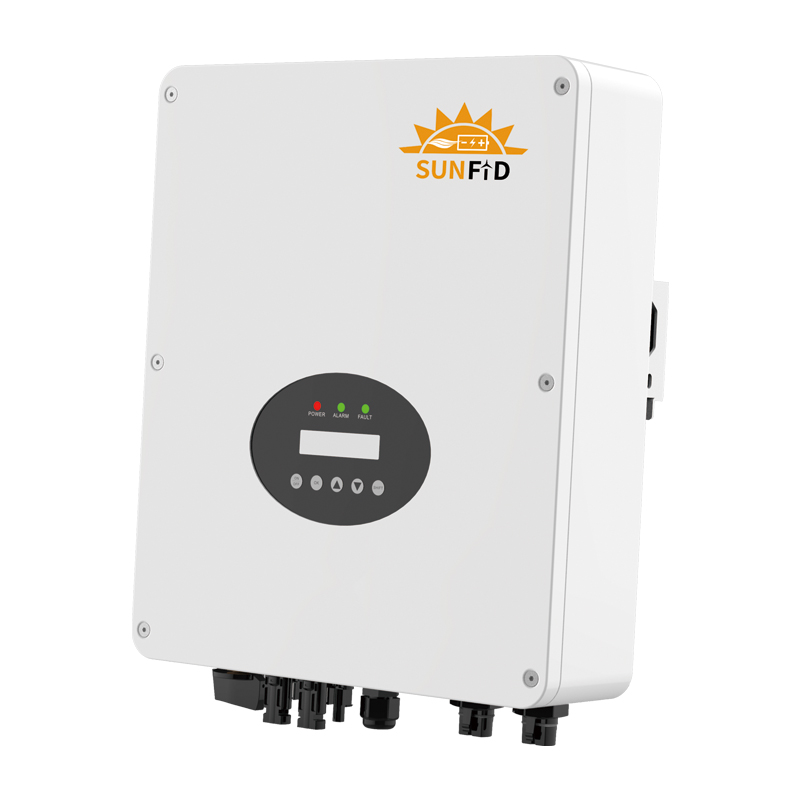

3KW Solar Pumping Inverter with MPPT AC Input

  • Model Number: SFD-PI3KG
  • Output Power: 3000W
  • Max.Output Current: 8A
  • Support AC & DC Input
  • Product description: 1. Interface visualization, LCD screen and LED status indicator display. 2. Maximum efficiency up to 97%, MPPT efficiency up to 99%. 3. Supports GPRS-RS485 (optional)
  • INQUIRY

3KW Solar Pumping Inverter with MPPT AC Input

Solar Pump Inverter Characters:

1: Compatible with panel components of various specifications in the industry, equipped with MC4 terminals, plug and play.

2: Fully automatic and intelligent operation, safe and stable, to prevent dry pumping and overflow.

3: Protection grade IP65, waterproof and dustproof, suitable for various harsh environments.

4: Interface visualization, LCD screen and LED status indicator display.

5: The highest efficiency can reach 97%, and the MPPT efficiency can reach 99%.

6: The monitoring mode supports GPRS\RS485 (optional).

7: In-line design, AC aviation foolproof plug, quick and easy installation.

8: Support mains/oil machine input, with various functions.

Parameters:

Model SFD-PI3KG
Input(DC side)
Max DC Voltage(Vdc) 900Vdc
Start-up Voltage (Vdc) 250Vdc
Max Input Current (A) 12.5A
MPPT Operating Range(Vdc) 450Vdc-750Vdc
Number of Inputs 2
Input (AC side)
AC Input Voltage (Vac) 380Vac± 15%
AC Input Frequency (HZ) 50/60HZ± 5Hz
Output(AC side)
Rated Output Power(W)
3000W
Max Output Current (A)
8A
AC Output Voltage(Vac)
380Vac3PH
Output frequency (Hz)
0~50/60Hz
Other Parameters
Noise typical[dB(A)]
<45dB(A)
Cooling Concept
Natural cooling
Operating Temperature(℃)
-25℃~+60℃
Protect Level
IP65
Communication
GPRSIRS485
Dimension(W*H*D mm)
410*346*160mm
Weight  (Kg)REF
12Kg
Certification
