215Kwh Commercial Battery Storage Systems Solar Energy Storage Cabinet

The battery energy storage system (ESS) containers are based on a modular design. They can be configured to match the required power and capacity requirements of the client’s application.

215KWH ESS Description:

1. Based on an All-in-one design, highly integrating LFP battery, BMS, PCS, EMS, power distribution system, temperature control system, and fire protection system.

2. This ESS can provide peak shaving, grid frequency modulation, power capacity expansion, and standby power supply to reduce electricity costs.

3. It has Safe, Simple, Smart Features.

215KWH ESS Application Scenarios:

Industrial and commercial parks, gas stations, PV ESS EV charging stations, mining areas, airports, datacenter and so on.

Product Paramenters:

215KWH Energy Storage System
DC Parameters	Rated voltage	768V
	Voltage Range	672-864V
	Rated Capacity	215.04KWH
	System Configuration	1P240S
AC Parameters(Grid connected)	Rated Power	100W
	Wiring Mode	3phase 4-wire /3 wire
	Rated Grid Voltage	400V
	Grid Voltage Range	320-460V
	Rated Current	144A
	Rated Grid Frequency	50/60HZ
AC Parameters (Off grid)	AC Off-grid Voltage	400V
AC Parameters (Off grid)	AC Off-grid Frequency	50/60HZ
System Parameters	Charge-discharge Rate	≤0.5CP
	Thermal Management Mode	Air Conditioning Cooling
	Fire Protection System	Type S aerosol/HFC-propane/perfluorohexanone
	Anticorrosive Level	C3 (C4/C5 Optional)
	Ingress Protection	IP54
Dimension	1400mm(L)1200mm( W)2200mm(H)
Weight	2300KG
Certificate	GB/T36276, UL9540A, IC62619,UN38.3

Product Details:

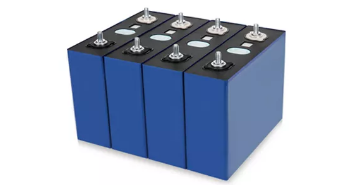

Battery Cell and Modules and Battery Cluster
The battery core adopts lithium iron phosphate battery-LFP, the capacity is 280Ah, the nominal voltage is 3.2V, the working voltage range is 2.5~3.65V,
